HAAPI Mobile Advanced Authentication Flows

On this page

Supported Platforms

At the time of writing, the UI SDK is available for Android only. An equivalent iOS SDK will be provided in the near future. In the meantime, you can use the iOS model SDK to create HAAPI based apps. Get started with the Swift iOS HAAPI code example.

In previous tutorials, the Hypermedia Authentication API (HAAPI) and the UI SDK were used for simple password based logins. Once HAAPI and your look and feel are integrated, your mobile app can also authenticate users in many ways, without code changes.

HAAPI Look and Feel

This tutorial shows the default HAAPI look and feel for a number of advanced authentication flows, which are driven by some alternative API responses. The techniques from the HAAPI customization tutorial can be used to control the look and feel of all of these screens.

Zero Code Required

When integrating HAAPI into a mobile app, the UI SDK will handle all of the API responses and screen rendering for you. The information provided here is only to promote understanding of your app's technical behavior.

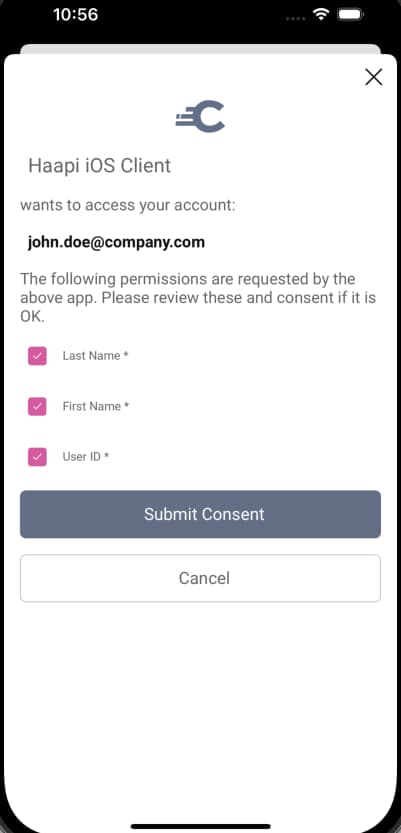

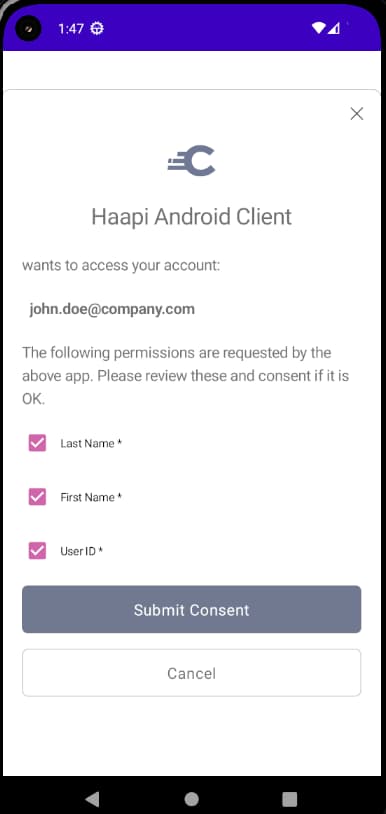

You may need to prompt the user to consent to use of their personal information. In this case you will activate consent for the mobile client. A more complex API response is then returned to the UI SDK, which renders a form with the following default look and feel. Depending on configuration, the user may be able to deselect some claims, and only consent to a subset of the permissions requested by the mobile app:

User Consent

Authentication Selection

At times there may be multiple ways in which the user can sign in. The default behavior is to display an authentication selection screen. The UI SDK has options to either render the response as a list (below) or to present a tabbed view:

Authentication Selection

The authentication selection screen may not always provide your preferred user experience. A more flexible option can be to use the username authenticator, to identify the user, then decide the form of authentication to use dynamically. The migrating to passwordless provides an example.

External Identity Providers

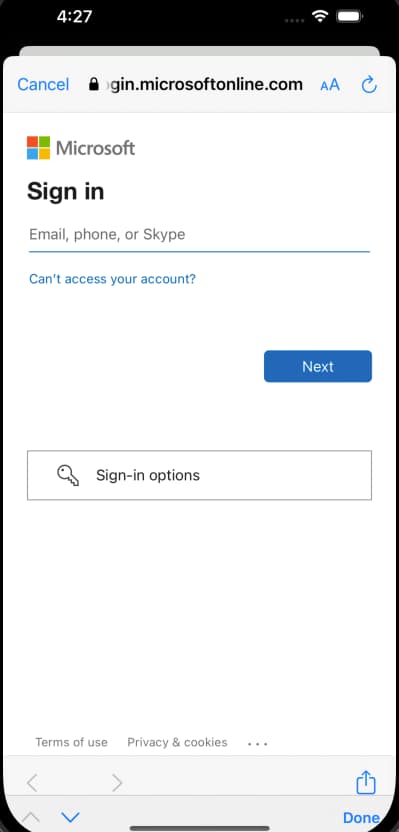

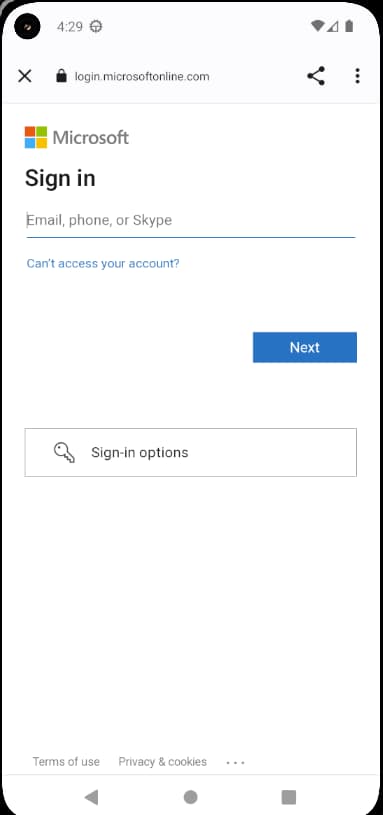

Users will sometimes authenticate with passwords that are not stored in the authorization server, and are therefore not first-party. The mobile app is therefore not entitled to access these passwords, so they are instead captured in an external browser. The UI SDK opens the system browser using a Chrome Custom Tab, so that the system browser is integrated into the mobile app:

Third Party Password

The API response ensures that the UI SDK captures third-party credentials in the preferred way:

json
12345678910111213141516171819202122232425262728293031
{
"metadata": {
"viewName": "authenticator/external-browser/launch"
},
"type": "authentication-step",
"actions": [{
"template": "client-operation",
"kind": "external-browser",
"title": "The authentication process needs to use an external browser",
"model": {
"name": "external-browser-flow",
"arguments": {
"href": "https://login.example.com/authn/authentication/AzureAD?_launch_nonce\u003dJHMptqUzqJhtyTDCCYO9OcaSQe8XWfVI"
},
"continueActions": [{
"template": "form",
"kind": "continue",
"title": "If you are not redirected automatically, click here to continue authenticating",
"model": {
"href": "https://login.example.com/authn/authentication/AzureAD",
"method": "GET",
"type": "application/x-www-form-urlencoded",
"fields": [{
"name": "_resume_nonce",
"type": "context"
}]
}
}]
}
}]
}

Polling Authenticators

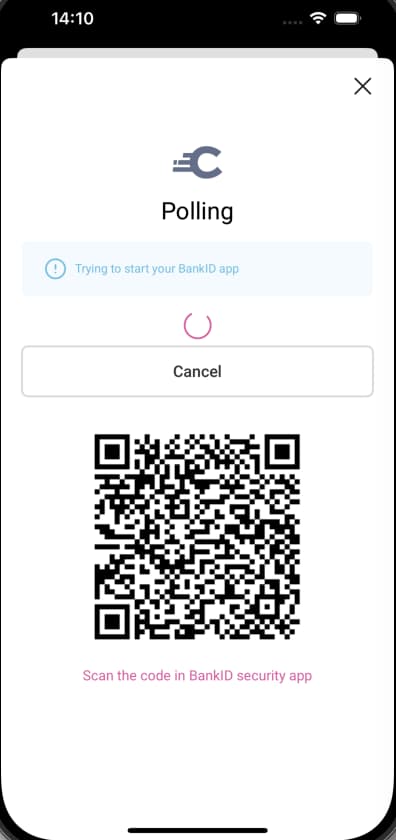

Secondary authentication factors such as email verification, require the user to switch to a separate app or device. In these cases a polling screen is shown:

Polling

The model for a polling-step is shown below, and includes an API URL for the UI SDK to call:

json
1234567891011121314151617181920212223242526272829303132
{
"messages": [{
"text": "Please authenticate using the email sent to: xxxx@xxxxcom",
"classList": []
}],
"metadata": {
"viewName": "authenticator/email/link-wait/index"
},
"type": "polling-step",
"properties": {
"recipientOfCommunication": "xxxx@xxxx.com",
"status": "pending"
},
"actions": [{
"template": "form",
"kind": "poll",
"model": {
"href": "/authn/authentication/Email/link-wait",
"method": "GET"
}
}, {
"template": "form",
"kind": "cancel",
"title": "Restart the process",
"model": {
"href": "/authn/authentication/Email",
"method": "GET",
"type": "application/x-www-form-urlencoded",
"actionTitle": "Restart the process"
}
}]
}

Passwordless

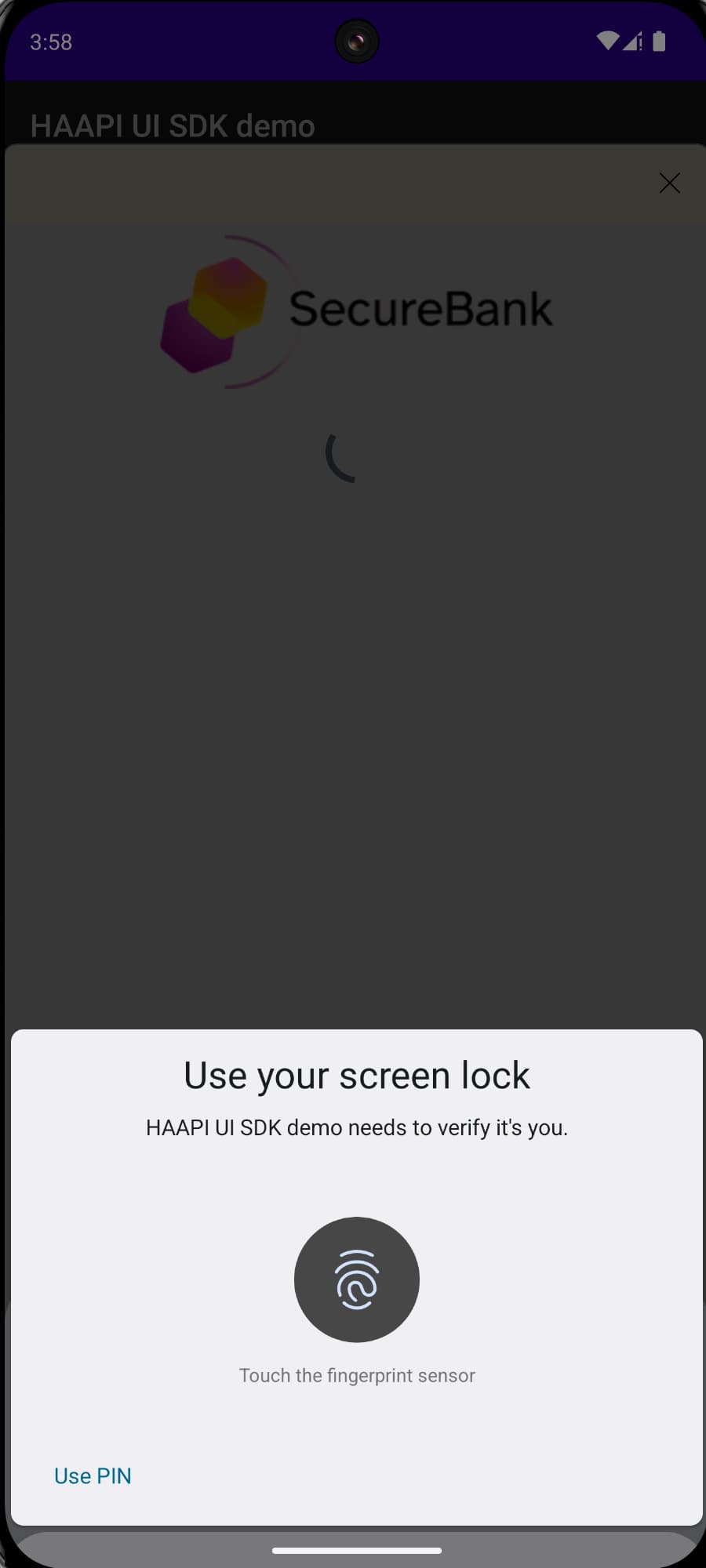

A current trend is to enable some or all users to authenticate via passwordless devices, using solutions built on WebAuthn, passkeys or digital wallets. This provides strong security with a great user experience. During this type of flow, some browser screens may be presented. Starting in version 8.0 of the Curity Identity Server, multi-factor WebAuthn devices are supported, including both passkeys and user verified devices.

Webauthn Browser

App2App

The HAAPI UI SDK can also use App2App authentication. This is commonly used in Open Banking solutions, where a merchant app can authenticate a user and capture consent via a high security bank app. A HAAPI polling response is used when the mobile app switches to the external app. See the App2App Tutorial for further details.

Mobile Security Code

Simple Action Screens

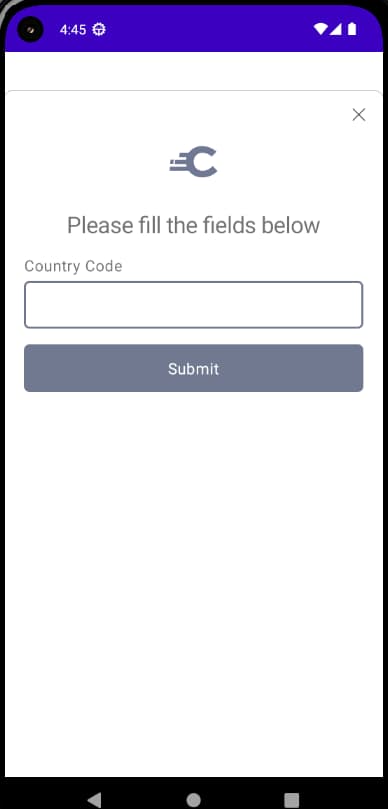

The Curity Identity Server enables you to implement simple custom authentication screens using actions. The authentication actions example shows how to use an attribute prompt to collect and then manipulate custom data. When using the UI SDK, this would have the following default presentation:

Attribute Prompt

Custom Authentication Screens

Finally, the getting started with plugins tutorial shows how to extend the Curity Identity Server in more advanced ways. This can involve completely custom screens, or actions that involve external APIs in authentication decisions.

By default, custom authentication plugins used with HAAPI are shown in the system browser. To render them in the mobile app, you must also implement your own HAAPI response, which is wired up in the plugin descriptor. A future code example will provide an end-to-end example:

java
12345678
public final class ExampleAuthenticatorPluginDescriptor implements AuthenticatorPluginDescriptor<ExampleAuthenticatorPluginConfig>
{
@Override
public Map<String, Class<? extends RepresentationFunction>> getRepresentationFunctions()
{
return unmodifiableMap(singletonMap("index", ExampleAuthenticatorRepresentationFunction.class));
}
}

Conclusion

Once you have implemented a code flow with the HAAPI UI SDK, your app can implement many authentication flows, with almost zero code. The next HAAPI tutorial provides an overview of your app's security lifecycle, so that you can understand the OAuth messages used.
