Authentication Options for DevOps Dashboard#

The DevOps Dashboard supports multiple authentication methods, enabling organizations to integrate with their existing identity infrastructure and security policies.

Available Authentication Methods#

There are several ways to authenticate administrators to the DevOps Dashboard:

1. Local Accounts (Default): Uses the html-form authenticator with local admin accounts stored in Curity’s account manager.

2. SAML Authentication: Integrates with enterprise SAML identity providers for single sign-on (SSO) with corporate credentials.

3. OpenID Connect Authentication: Connects to OIDC providers (Microsoft Entra ID, Okta, Google, etc.) for modern OAuth-based authentication.

4. Multi-Factor Authentication: Requires a second factor (SMS, TOTP, etc.) in addition to primary authentication.

This guide shows you how to configure different authentication methods for the DevOps Dashboard.

How DevOps Dashboard Authentication Works#

Unlike the Admin UI (which has its own federated login configuration in System → Deployment → Admin Service), the DevOps Dashboard authenticates through an OAuth client configuration.

The authentication flow:

1. User accesses the DevOps Dashboard
2. Dashboard redirects to the OAuth authorization endpoint
3. User sees the authenticator(s) configured in the OAuth client’s Allowed Authenticators setting
4. After successful authentication, an authorization code is returned
5. Access token is exchanged and used for RESTCONF API access

Configuring Authentication Methods#

Step 1: Create or Configure Your Authenticator#

Authenticators are configured in the authentication profile (not in individual OAuth profiles).

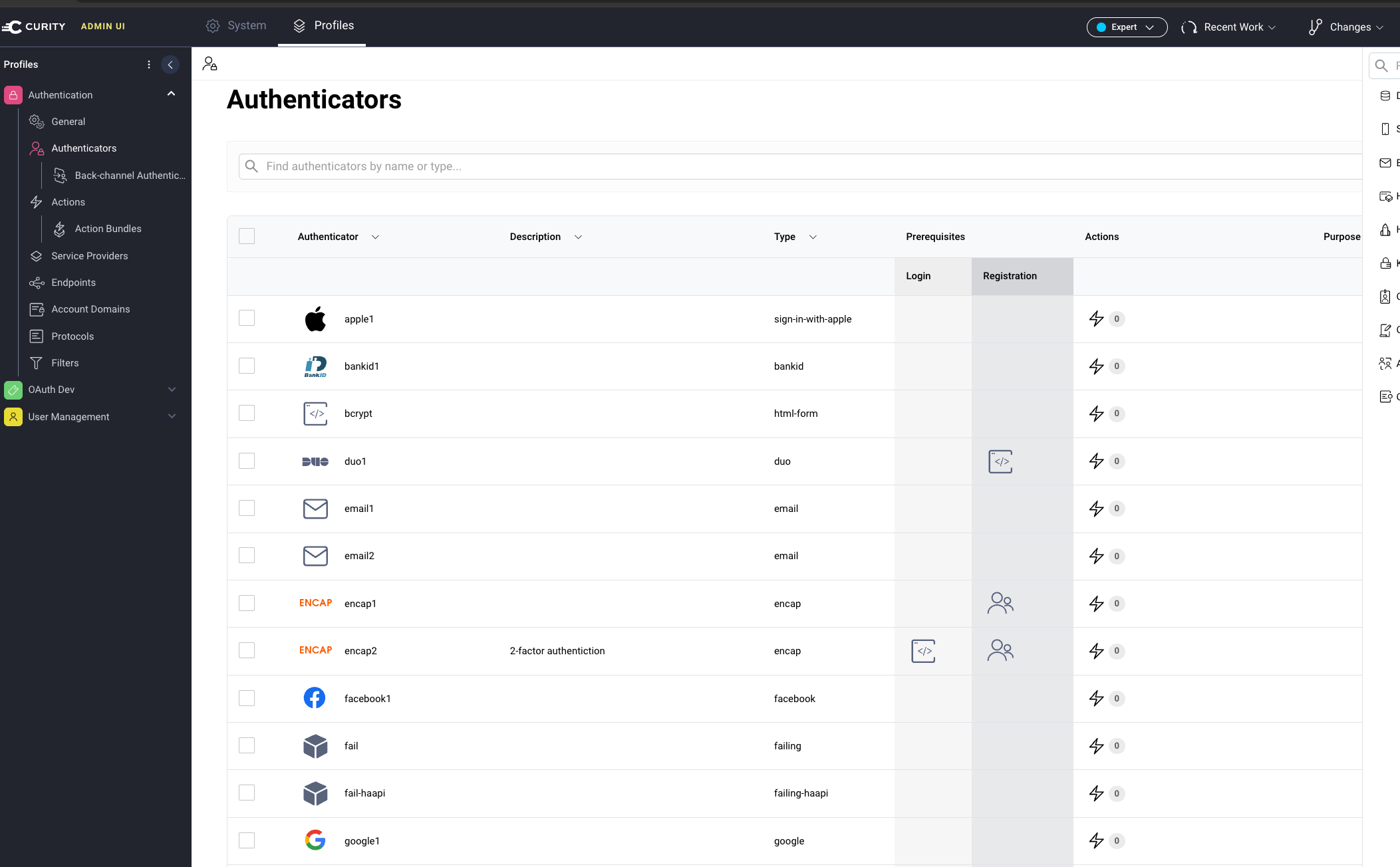

Navigate to Profiles → authentication → Authenticators to view and manage all available authentication methods:

Example: SAML Authenticator#

1. In the Admin UI, go to Profiles → authentication → Authenticators
2. Click New Authenticator and select SAML
3. Configure your SAML Service Provider settings:
   • Entity ID (e.g., https://your-domain.com/dashboard)
   • Import Identity Provider metadata
   • Configure attribute mapping

<authenticator>
    <id>SAML</id>
    <authentication-context-class-reference>urn:virtual:assertion-sig:saml</authentication-context-class-reference>
    <description>Virtual SAML (saml2 replaces saml)</description>
    <saml2 xmlns="https://curity.se/ns/conf/authenticators/saml2">
      <issuer-entity-id>se.curity</issuer-entity-id>
      <idp-entity-id>virtual-idp</idp-entity-id>
      <idp-url>https://127.0.0.1:1234/saml/idp/sign-assertion</idp-url>
      <signature-verification-key>virtual-idp-signer</signature-verification-key>
      <wants-response-signed>false</wants-response-signed>
      <wants-assertion-signed>true</wants-assertion-signed>
    </saml2>
</authenticator>

Example: OIDC Authenticator#

1. In the Admin UI, go to Profiles → authentication → Authenticators
2. Click New Authenticator and select OpenID Connect
3. Configure your OIDC settings:
   • Client ID and Client Secret (from your identity provider)
   • Discovery URL or manual endpoint configuration
   • Requested scopes

<authenticator>
    <id>oidc1</id>
    <oidc xmlns="https://curity.se/ns/conf/authenticators/oidc">
      <configuration-url>https://localhost:7777/.well-known/openid-configuration</configuration-url>
      <client-id>virt-client</client-id>
      <client-secret>client-secret</client-secret>
      <http-client>trustStoreHttpClient</http-client>
    </oidc>
</authenticator>

Step 2: Update the OAuth Client Configuration#

Once your authenticator is configured in the authentication profile, update the DevOps Dashboard OAuth client to use it:

1. Navigate to Profiles → [your-oauth-profile] → Clients
2. Select the DevOps Dashboard client (e.g., devops_dashboard_restconf_client)

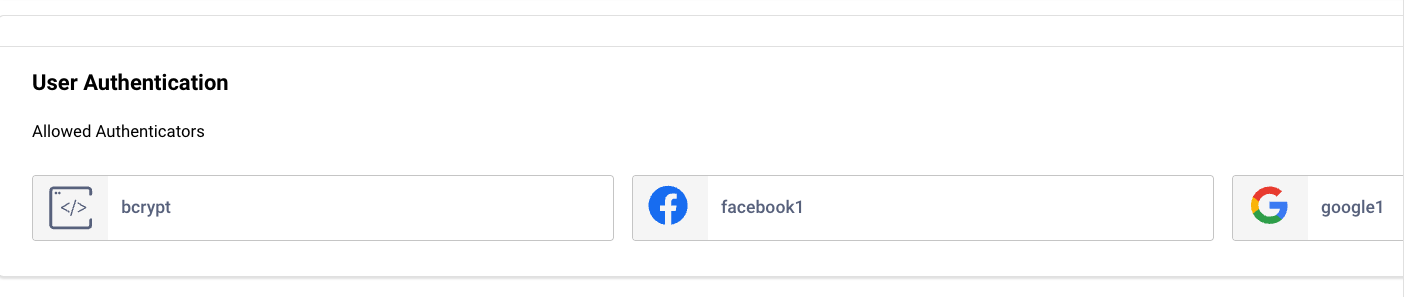

3. Scroll down to the User Authentication section
4. In the Allowed Authenticators field, select your federated authenticator
5. Save or Commit the changes

Configuring Multi-Factor Authentication#

To require MFA for DevOps Dashboard access, create an MFA action that wraps your primary authenticator:

<authentication-action>
<id>MFA</id>
<multi-factor-condition xmlns="https://curity.se/ns/ext-conf/multi-factor-condition">
  <subject-condition>
    <subject-pattern-condition>
      <subject-pattern>test</subject-pattern>
      <second-factor>
        <id>TOTP</id>
      </second-factor>
      <allow-authentication-with-sso-for-second-factor>true</allow-authentication-with-sso-for-second-factor>
    </subject-pattern-condition>
  </subject-condition>
</multi-factor-condition>
</authentication-action>

Then update the OAuth client’s Allowed Authenticators to use mfa-dashboard-auth.

For more details, see the Conditional Multi-Factor action documentation.

Claims and Attribute Mapping#

Configure claims providers to map user attributes from your authentication provider to the tokens issued for DevOps Dashboard access:

<authentication-subject-claims-provider>
  <id>authentication-claims</id>
  <claim>
    <name>email</name>
    <value>${request.subject.email}</value>
  </claim>
  <claim>
    <name>groups</name>
    <value>${request.subject.memberOf}</value>
  </claim>
</authentication-subject-claims-provider>
